CTF-Series Candle Filter

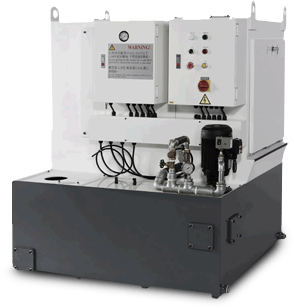

CTF-Series Candle Filter Automatic Type

Filtration Effect: 1µ - 3µ
Unit Flow Rates: 50, 60, 90, 120, 180 and 240 L/min.

Candle Filters removes the finest particles from your grinding oil. Each candle filter element is composed of thousands of compressed thin wafers. All particles over one micron are trapped on the outer edge of the filter element.

Key features:

  • Automatic cleaning by rapid backwash cycle. Air is used to blow out trapped particles.
  • Reclaiming of valuable particles. Oil is removed and dried then deposited into the sludge basket.
  • The replaceable filter elements will last several years.

Pre filtering is recommended when larger particles or chips are being filtered.

For oil coolant applications only.


CFM-Series Candle Filter Manual Type

CFM-Series Candle Filter

An economical solution with uncompromised quality where the operator must clean and back wash the filter elements.

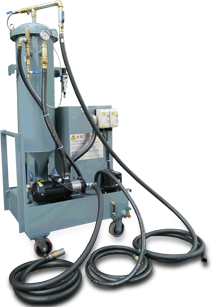

CFMp-Series Candle Filter Portable Type

The candle is comprised of thousands of compressed wafers that restrict particles from 1-3 micron from passing through.

A portable solution that can be maneuvered between machines. Ideal with EDM.


Tungsten carbide tool grinding, electrical discharge machines, honing machines and steel ball grinding.

PFA Paper Filters

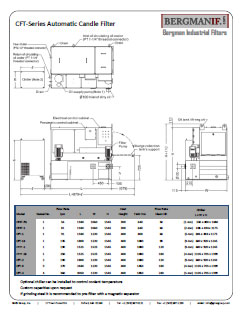

CFT Footprint
PFA Paper Filters

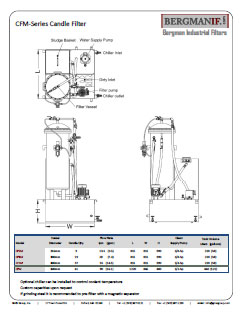

CFM Footprint
BIF Table BFu
CFMp Footprint
Download CFMp Sales Brochure
Sales Brochure
Download CFM Sales Brochure
Sales Brochure
Download CFT Sales Brochure
Sales Brochure
